Cylinder, Square Tube
See the table below for the sizes we produce now. By selecting from this list, you can avoid investment in mold costs.

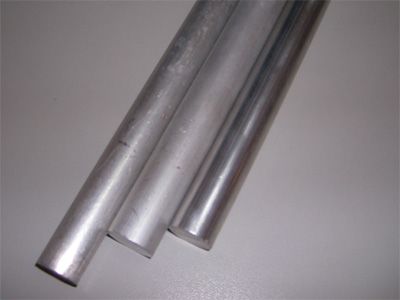

Pipe
Pipe:(back to top)
Precision Level:
Diameter: ±0.02 mm
Roundness: ±0.02 mm
Wall thickness: ±0.03 mm
Straightness: normally 0.15mm/Meter. We can also achieve 0.03mm/250mm
Surface Roughness: <1.5μm
| Type ( Unit: mm ) | A ( Unit: mm ) | B ( Unit: mm ) | Thickness ( Unit: mm ) | Kg/m |
| YG-Φ14×3.5 | 14 | 7 | 3.5 | 0.42 |
| YG-Φ16.2×2.8 | 16.2 | 10.6 | 2.8 | 0.32 |
| YG-Φ16.8×4 | 16.8 | 8.8 | 4 | 0.43 |
| φ17×2.5 | 17 | 12 | 2.5 | 0.32 |
| YG-Φ17.3×1.475 | 17.3 | 14.35 | 1.475 | 0.199 |
| YG-Φ17.5×2 | 17.5 | 13.5 | 2 | 0.26 |
| YG-Φ18.5×2.3 | 18.5 | 13.9 | 2.3 | 0.32 |
| YG-Φ19×1.8 | 19 | 15.4 | 1.8 | 0.264 |
| φ20×2.5 | 20 | 15 | 2.5 | 0.38 |
| φ20×2.4 | 20 | 15.2 | 2.4 | 0.358 |
| YG-φ20×1.2 | 20 | 17.6 | 1.2 | 0.192 |
| φ21×2.2 | 21 | 16.6 | 2.2 | 0.36 |
| φ21.34×2.77 | 21.34 | 15.8 | 2.77 | 0.436 |
| YG-Φ21.5×3.9 | 21.5 | 13.7 | 3.9 | 0.58 |
| YG-Φ22.2×1.8 | 22.2 | 18.6 | 1.8 | 0.31 |
| YG-Φ22.3×2.9 | 22.3 | 16.5 | 2.9 | 0.48 |
| YG-Φ23×2 | 23 | 19 | 2 | 0.36 |
| YG-24×5 | 24 | 14 | 5 | 0.81 |
| YG-Φ25×2 | 25 | 21 | 2 | 0.39 |
| φ26×2.25 | 26 | 21.5 | 2.25 | 0.4479 |
| YG-Φ26×3 | 26 | 20 | 3 | 0.58 |
| YG-内Φ26*2 | 26 | 22 | 2 | 0.48 |
| YG-Φ27×3.75 | 27 | 19.5 | 3.75 | 0.74 |
| YG-φ27.5×4 | 27.5 | 19.5 | 4 | 0.8 |
| YG-Φ27.5×3.9 | 27.5 | 19.7 | 3.9 | 0.78 |
| YG-φ28×8.25 | 28 | 11.5 | 8.25 | 1.39 |
| YG-φ29×8.75 | 29 | 11.5 | 8.75 | 1.51 |
| YG-φ29×9.75 | 29 | 9.5 | 9.75 | 1.6 |
| φ29.6×3.8 | 29.6 | 22 | 3.8 | 0.832 |
| φ30×2 | 30 | 26 | 2 | 0.5 |
| φ30×4 | 30 | 22 | 4 | 0.882 |
| φ30×3 | 30 | 24 | 3 | 0.687 |
| YG-φ30×7.75 | 30 | 14.5 | 7.75 | 1.46 |
| YG-φ30×9.25 | 30 | 11.5 | 9.25 | 1.63 |
| YG-φ30×3.9 | 30 | 22.2 | 3.9 | 0.86 |
| YG-Φ30×1.7 | 30 | 26.6 | 1.7 | 0.41 |
| YG-Φ30×1.3 | 30 | 27.4 | 1.3 | 0.32 |
| YG-φ31×1.9 | 31 | 27.2 | 1.9 | 0.47 |
| φ31.8×2.2 | 31.8 | 31.8 | 2.2 | 0.58 |
| YG-φ31.8×1 | 31.8 | 28.8 | 1 | 0.26 |
| YG-φ32×2 | 32 | 28 | 2 | 0.51 |
| YG-φ32×4.5 | 32 | 23 | 4.5 | 1.05 |
| YG-φ32×9.9 | 32 | 12.2 | 9.9 | 1.86 |
| YG-φ32×3 | 32 | 26 | 3 | 0.74 |
| φ32.5×4.55 | 32.5 | 17.6 | 4.55 | 1.079 |
| YG-Φ33.6×3.8 | 33.6 | 26 | 3.8 | 0.96 |
| YG-φ34.9×1 | 34.9 | 32.9 | 1 | 0.29 |
| YG-φ35×1.9 | 35 | 31.2 | 1.9 | 0.53 |
| φ35×2 | 35 | 31 | 2 | 0.6 |
| YG-Φ36×5 | 36 | 26 | 5 | 1.31 |
| YG-Φ36×1.9 | 36 | 32.2 | 1.9 | 0.55 |
| YG-Φ36×2.03 | 36 | 31.94 | 2.03 | 0.59 |
| YG-φ36.2×4.8 | 36.2 | 26.6 | 4.8 | 1.28 |
| φ36.3×5.9 | 36.3 | 26 | 5.9 | 1.521 |
| φ37×8.5 | 37 | 26 | 8.5 | 2.1 |
| φ37×11 | 37 | 31 | 11 | 2.45 |
| YG-φ37×1.9 | 37 | 33.2 | 1.9 | 0.57 |
| φ37.7×5 | 37.7 | 27.7 | 5 | 1.387 |
| YG-Φ38×5 | 38 | 28 | 5 | 1.4 |
| φ38.1×1.6 | 38.1 | 26 | 1.6 | 0.52 |
| YG-Φ38.1×1.8 | 38.1 | 34.5 | 1.8 | 0.55 |
| YG-φ38.1×1 | 38.1 | 36.1 | 1 | 0.32 |
| YG-φ38.2×1.6 | 38.2 | 35 | 1.6 | 0.5 |
| φ39.6×3.8 | 39.6 | 31 | 3.8 | 1.154 |
| YG-φ39.7×2 | 39.7 | 35.7 | 2 | 0.64 |
| φ40×4 | 40 | 26.6 | 4 | 1.22 |
| YG-Φ40×7.5 | 40 | 25 | 7.5 | 2.068 |
| YG-Φ40×5 | 40 | 30 | 5 | 1.48 |
| YG-Φ40×10 | 40 | 20 | 10 | 2.54 |
| YG-Φ40.5×3.9 | 40.5 | 32.7 | 3.9 | 1.21 |
| YG-φ40.7×2 | 40.7 | 36.7 | 2 | 0.66 |
| φ41×13 | 41 | 26.6 | 13 | 3.1 |
| φ41.7×6.4 | 41.7 | 28.9 | 6.4 | 1.916 |
| YG-Φ42×3.15 | 42 | 35.7 | 3.15 | 1.04 |
| YG-φ42×1.6 | 42 | 38.8 | 1.6 | 0.55 |
| YG-Φ42*6.75 | 42 | 28.5 | 6.75 | 2.02 |
| φ42.3×2.65 | 42.3 | 37 | 2.65 | 0.891 |
| YG-φ42.5×3.9 | 42.5 | 34.7 | 3.9 | 1.28 |
| YG-φ42.7×2 | 42.7 | 38.7 | 2 | 0.69 |
| φ43×11 | 43 | 21 | 11 | 3 |
| φ43×11.5 | 43 | 20 | 11.5 | 3.1 |
| φ43×14 | 43 | 15 | 14 | 3.5 |
| YG-Φ43×5 | 43 | 33 | 5 | 1.61 |
| YG-φ43.3×5.1 | 43.3 | 33.1 | 5.1 | 1.65 |
| YG-Φ45×3.5 | 45 | 38 | 3.5 | 1.23 |
| YG-Φ45×3 | 45 | 39 | 3 | 1.06 |
| YG-Φ45.3*4.65 | 45.3 | 36 | 4.65 | 1.6 |
| YG-φ46×4 | 46 | 37 | 4.5 | 1.43 |
| YG-φ46×2 | 46 | 42 | 2 | 0.75 |
| YG-φ46×1.9 | 46 | 43 | 1.5 | 0.71 |
| YG-φ46×1.9 | 46 | 42.2 | 1.9 | 0.71 |
| YG-Φ46×2.03 | 46 | 41.94 | 2.03 | 0.76 |
| YG-Φ46×1.6 | 46 | 42.8 | 1.6 | 0.6 |
| YG-φ47×3.2 | 47 | 40.6 | 3.2 | 1.19 |
| φ48×4 | 48 | 40 | 4 | 1.49 |
| φ48×2.5 | 48 | 38 | 5 | 0.965 |
| YG-Φ48.1×2.93 | 48.1 | 42.24 | 2.93 | 1.12 |
| YG-Φ48.1×1.95 | 48.1 | 44.2 | 1.95 | 0.76 |
| φ48.3×3.7 | 48.3 | 40.9 | 3.7 | 1.4 |
| YG-Φ48.3*3 | 48.3 | 42.3 | 3 | 1.2 |
| YG-Φ48.3*2 | 48.3 | 44.3 | 2 | 0.8 |
| φ48.4×2.7 | 48.4 | 43 | 2.7 | 1.05 |
| YG-Φ48.6×1.6 | 48.6 | 45.4 | 1.6 | 0.64 |
| YG-φ49.8×5.2 | 49.8 | 39.4 | 5.2 | 1.97 |
| φ50×4 | 50 | 42 | 4 | 1.56 |
| φ50×15 | 50 | 20 | 15 | 4.45 |
| φ50×2 | 50 | 46 | 2 | 0.814 |
| YG-Φ50×5 | 50 | 40 | 5 | 1.91 |
| φ50.8×1.6 | 50.8 | 47.6 | 1.6 | 0.68 |
| φ50.8×1.8 | 50.8 | 47.2 | 1.8 | 0.76 |
| YG-Φ50.8×1.6 | 50.8 | 47.6 | 1.6 | 0.67 |
| YG-Φ50.8×1.8 | 50.8 | 47.2 | 1.8 | 0.751 |
| YG-φ50.8×2.0 | 50.8 | 46.8 | 2 | 0.83 |
| YG-φ50.8×2 | 50.8 | 46.8 | 2 | 0.83 |
| YG-Φ52.5×3.8 | 52.5 | 44.9 | 3.8 | 1.57 |
| YG-φ55×1.9 | 55 | 51.2 | 1.9 | 0.86 |
| YG-Φ55×1.9 | 55 | 51.2 | 1.9 | 0.86 |
| YG-Φ55×2.03 | 55 | 50.94 | 2.03 | 0.91 |
| φ56×2 | 56 | 52 | 2 | 0.916 |
| YG-φ56×8 | 56 | 40 | 8 | 3.26 |
| YG-φ56×18 | 56 | 20 | 18 | 5.82 |
| YG-φ56×1.8 | 56 | 52.4 | 1.8 | 0.83 |
| YG-Φ56*5.65 | 56 | 44.7 | 5.65 | 2.41 |
| YG-φ56.5×8 | 56.5 | 40.5 | 8 | 3.29 |
| YG-Φ56.7*5.8 | 56.7 | 45.1 | 5.8 | 2.5 |
| YG-φ57×4.5 | 57 | 48 | 4.5 | 2 |
| YG-φ57×2 | 57 | 53 | 2 | 0.93 |
| YG-φ57×2.4 | 57 | 52.2 | 2.4 | 1.11 |
| YG-φ57×1.9 | 57 | 53.2 | 1.9 | 0.89 |
| YG-Φ57.5×3 | 57.5 | 51.5 | 3 | 1.39 |
| φ60×8 | 60 | 44 | 8 | 3.55 |
| φ60×9 | 60 | 42 | 9 | 3.89 |
| YG-φ60×4 | 60 | 52 | 4 | 1.9 |
| φ60×5 | 60 | 50 | 5 | 2.33 |
| YG-Φ60×10 | 60 | 40 | 10 | 4.24 |
| YG-φ63.5×1.6 | 63.5 | 60.3 | 1.6 | 0.84 |
| YG-φ64×1.9 | 64 | 60.2 | 1.9 | 1 |
| YG-Φ64×1.7 | 64 | 60.6 | 1.7 | 0.9 |
| YG-Φ65×3.7 | 65 | 57.6 | 3.7 | 1.92 |
| YG-φ66×1.7 | 66 | 62.6 | 1.7 | 0.93 |
| YG-φ66.4×2 | 66.4 | 62.4 | 2 | 1.1 |
| YG-φ69×3.7 | 69 | 61.6 | 3.7 | 2.05 |
| YG-Φ70×10 | 70 | 50 | 10 | 5.1 |
| YG-Φ74.8×2.95 | 74.8 | 68.9 | 2.95 | 1.8 |
| YG-φ75×4.5 | 75 | 66 | 4.5 | 2.7 |
| YG-Φ76.5X1.4 | 76.5 | 73.7 | 1.4 | 0.89 |
| YG-Φ77.5×3.4 | 77.5 | 70.7 | 3.4 | 2.14 |
| YG-φ78×1.4 | 78 | 75.2 | 1.4 | 0.91 |
| YG-φ79×1.4 | 79 | 76.2 | 1.4 | 0.92 |
| φ80×4 | 80 | 64 | 8 | 2.6 |
| φ80×8 | 80 | 64 | 8 | 4.95 |
| YG-Φ80×5 | 80 | 70 | 5 | 3.1 |
| YG-φ80×1.9 | 80 | 76.2 | 1.9 | 1.26 |
| YG-Φ80X9 | 80 | 62 | 9 | 5.42 |
| YG-Φ80×7 | 80 | 66 | 7 | 4.34 |
| φ83×5 | 83 | 73 | 5 | 3.308 |
| φ85×8.5 | 85 | 51 | 17 | 5.516 |
| φ85×17.5 | 85 | 50 | 17.5 | 10.02 |
| YG-φ85.6×3 | 85.6 | 79.6 | 3 | 2.11 |
| φ88.9×3.25 | 88.9 | 82.4 | 3.25 | 2.4 |
| φ89×1.4 | 89 | 86.2 | 1.4 | 1.04 |
| YG-Φ89×1.1 | 89 | 86.8 | 1.1 | 0.82 |
| YG-Φ90×8 | 90 | 74 | 8 | 5.56 |
| YG-Φ90×15 | 90 | 60 | 15 | 9.6 |
| Φ90×17.5 | 90 | 55 | 17.5 | 10.76 |
| YG-φ90.1×3.8 | 90.1 | 82.5 | 3.8 | 2.79 |
| YG-φ91×1.4 | 91 | 88.2 | 1.4 | 1.06 |
| YG-φ93×1.9 | 93 | 89.2 | 1.9 | 1.47 |
| YG-φ93×1.4 | 93 | 90.2 | 1.4 | 1.09 |
| YG-Φ93×10 | 93 | 73 | 10 | 7.04 |
| YG-Φ93×15 | 93 | 63 | 15 | 9.92 |
| YG-Φ93×25 | 93 | 43 | 25 | 14.42 |
| φ100×10 | 100 | 80 | 10 | 7.634 |
| φ100×8 | 100 | 84 | 8 | 6.243 |
| YG-Φ100×3 | 100 | 94 | 3 | 2.5 |
| YG-Φ100×4 | 100 | 92 | 4 | 3.257 |
| YG-Φ100×5 | 100 | 90 | 5 | 4.03 |
| YG-Φ100×9 | 100 | 82 | 9 | 7 |
| YG-Φ100×8 | 100 | 84 | 8 | 6.24 |
| YG-Φ105.5×3 | 105.5 | 99.5 | 3 | 2.62 |
| φ115×10 | 115 | 95 | 10 | 8.906 |
| φ120×6 | 120 | 108 | 6 | 5.8 |
| YG-Φ120×10 | 120 | 100 | 10 | 9.331 |
| YG-Φ120×16 | 120 | 88 | 16 | 14.11 |
| YG-φ125×2.5 | 125 | 120 | 2.5 | 2.6 |
| YG-Φ127×6.25 | 127 | 114.5 | 6.25 | 6.4 |
| YG-φ130×10 | 130 | 110 | 10 | 10.18 |
| YG-φ130×12 | 130 | 106 | 12 | 12.01 |
| YG-Φ130×9 | 130 | 112 | 9 | 9.3 |
| YG-φ133.8×5 | 133.8 | 123.8 | 5 | 5.48 |
| YG-φ136×8 | 136 | 120 | 8 | 8.69 |
| φ140×15 | 140 | 110 | 15 | 16 |
| YG-Φ140×10 | 140 | 120 | 10 | 12.466 |
| YG-Φ145×6 | 145 | 133 | 6 | 7.07 |
| YG-φ149×5 | 149 | 139 | 5 | 6.13 |
| YG-φ149.3×4.9 | 149.3 | 139.5 | 4.9 | 6 |
| φ150×10 | 150 | 130 | 10 | 11.875 |
| YG-φ150×12 | 150 | 126 | 12 | 14.05 |
| YG-Φ150×5 | 150 | 140 | 5 | 6.15 |
| YG-Φ150×8 | 150 | 134 | 8 | 9.64 |
| φ155×12.5 | 155 | 130 | 12.5 | 15.11 |
| YG-Φ156×8 | 156 | 140 | 8 | 10 |
| YG-φ158×5.8 | 158 | 146.4 | 5.8 | 7.5 |
| YG-φ158.7×5 | 158.7 | 148.7 | 5 | 6.53 |
| φ167×6 | 167 | 155 | 6 | 8.2 |
| φ167×8 | 167 | 151 | 8 | 10.789 |
| YG-φ168.7×5 | 168.7 | 158.7 | 5 | 6.97 |
| φ171×5 | 171 | 161 | 5 | 7.04 |
| YG-Φ175×15 | 175 | 145 | 15 | 20.4 |
| YG-φ175×12 | 175 | 151 | 12 | 16.6 |
| φ180×12 | 180 | 156 | 12 | 17.2 |
| YG-Φ180×1.7 | 180 | 176.6 | 1.7 | 2.6 |
| YG-φ180×6.5 | 180 | 167 | 6.5 | 9.57 |
| YG-Φ185×1.6 | 185 | 181.8 | 1.6 | 2.489 |
| φ192×6 | 192 | 180 | 6 | 9.47 |
| YG-Φ192×12 | 192 | 168 | 12 | 18.32 |
| YG-Φ199×7 | 199 | 185 | 7 | 11.4 |
| φ200×12 | 200 | 176 | 12 | 19.136 |
| YG-Φ200×10 | 200 | 180 | 10 | 16.12 |
| YG-φ202×1.8 | 202 | 198.4 | 1.8 | 3.06 |
| YG-φ226×28 | 226 | 170 | 28 | 47.03 |
| φ230×5 | 230 | 220 | 5 | 9.543 |
| Φ230×15 | 230 | 200 | 15 | 27.36 |
| YG-Φ234×8 | 234 | 218 | 8 | 15.34 |
| YG-φ236×20 | 236 | 196 | 20 | 36.8 |
| φ240×10 | 240 | 220 | 10 | 19.51 |
| φ240×5 | 240 | 230 | 5 | 9.967 |
| YG-Φ250×10 | 250 | 230 | 10 | 20.36 |
| YG-Φ256×6 | 256 | 244 | 6 | 12.723 |
| φ260×6 | 260 | 248 | 6 | 12.927 |
| φ260×8 | 260 | 244 | 8 | 17.1 |
| YG-Φ260×6 | 260 | 248 | 6 | 13 |
| YG-Φ264×7 | 264 | 250 | 7 | 15.26 |
| φ268×8 | 268 | 252 | 8 | 17.6 |
| φ268×8 | 268 | 252 | 8 | 17.6 |
| φ286×8 | 286 | 270 | 8 | 18.9 |
| φ291×6 | 291 | 279 | 6 | 14.505 |
| φ300×10 | 300 | 280 | 10 | 24.6 |
| φ300×12 | 300 | 276 | 12 | 29.31 |
| φ306×8 | 306 | 290 | 8 | 20.22 |
| YG-Φ306×8 | 306 | 290 | 8 | 20.2 |
| Φ307×25.5 | 307 | 256 | 25.5 | 60.9 |
| YG-Φ310×6 | 310 | 298 | 6 | 15.472 |
| Φ320×12 | 320 | 296 | 12 | 31.5 |
| YG-Φ320×12 | 320 | 296 | 12 | 31.5 |
| YG-φ322×8 | 322 | 306 | 8 | 21.4 |
| φ326×6 | 326 | 314 | 6 | 16.286 |
| YG-Φ320×10 | - | - | - | - |
| YG-330 | 330 | 257 | 36.50 | 90.82 |
| YG-332 | 332 | 320 | 6 | 16.591 |
| YG-340 | 340 | 326 | 7 | 19.76 |
| YG-347 | 347 | 335 | 6 | 17.355 |
| YG-348.4 | 348.4 | 335 | 6.7 | 19.419 |
| YG-350 | 350 | 236 | 57 | 141.663 |
| YG-350 | 350 | 226 | 62 | 151.38 |
| YG-356 | 356 | 340 | 8 | 23.615 |
| YG-356 | 356 | 335 | 10.5 | 30.772 |
| YG-375 | 375 | 345 | 15 | 45.653 |
| YG-376 | 376 | 360 | 8 | 24.98 |
| YG-376 | 376 | 364 | 6 | 18.82 |
| YG-390 | 390 | 374 | 8 | 25.923 |
| YG-400 | 400 | 384 | 8 | 26.600 |
| YG-406 | 406 | 390 | 8 | 27.015 |
| YG-421 | 421 | 391 | 15 | 51.660 |
| YG-452 | 452 | 434 | 9 | 33.82 |
| YG-461 | 461 | 445 | 8 | 30.72 |
| YG-500 | 500 | 476 | 12 | 49.647 |
| YG-500 | 500 | 488 | 6 | 18.634 |
| YG-508 | 508 | 492 | 8 | 33.930 |
| YG-512 | 512 | 496 | 8 | 34.2 |
| YG-536 | 536 | 520 | 8 | 38.10 |
Angle aluminum:(back to top)
| Type ( Unit: mm ) | A ( Unit: mm ) | B ( Unit: mm ) | Thickness ( Unit: mm ) | Kg/m |
| a-15×15×2 | 15 | 15 | 2 | 0.15 |
| a-15.9×15.9×3.2 | 15.9 | 15.9 | 3.2 | 0.25 |
| a-20×15×2 | 20 | 15 | 2 | 0.178 |
| a-30×200×3 | 20 | 30 | 3 | 0.38 |
| a-24×17×8/3 | 24 | 17 | 8/3 | 0.59 |
| a-24.5×24.5×1.8 | 24.5 | 24.5 | 1.8 | 0.229 |
| a-25×25×15(R10) | 25 | 25 | 15 | 1.359 |
| a-25×15×1.5 | 25 | 15 | 1.5 | 0.156 |
| a-30×30×3 | 30 | 30 | 3 | 0.46 |
| a-25×30×2 | 30 | 25 | 2 | 0.28 |
| a-35×35×4 | 35 | 35 | 4 | 0.71 |
| a-38×38×6 | 38 | 38 | 6 | 1.15 |
| a-40×40×4 | 40 | 40 | 4 | 0.821 |
| a-40×40×5 | 40 | 40 | 5 | 1.03 |
| a-47×8×2.5 | 47 | 8 | 2.5 | 0.36 |
| a-47×8×1.5 | 47 | 8 | 1.5 | 0.22 |
| a-50×50×5 | 50 | 50 | 5 | 1.3 |
| a-50×50×5 | 50 | 50 | 5 | 1.3 |
| a-50×30×4 | 50 | 30 | 4 | 0.82 |
| a-54×51×6(R5) | 54 | 51 | 6 | 1.55 |
| a-54×12×2 | 54 | 12 | 2 | 0.35 |
| a-56×2.5×2.5 | 56 | 2.5 | 2.5 | 0.416 |
| a-60×40×5 | 60 | 40 | 5 | 1.3 |
| a-60×40×4 | 60 | 40 | 4 | 1.037 |
| a-60×60×6 | 60 | 60 | 6 | 1.87 |
| a-63×28×4 | 63 | 28 | 4 | 0.94 |
| a-70×50×5 | 70 | 50 | 5 | 1.553 |
| a-76×34.5×3 | 76 | 34.5 | 3 | 0.88 |
| a-80×40×8 | 80 | 40 | 8 | 2.456 |
| a-80×50×6 | 80 | 50 | 6 | 0.2 |
| a-80×40×4 | 80 | 40 | 4 | 1.253 |
| a-90×80×10 | 80 | 90 | 10 | 4.37 |
| a-80×80×8 | 80 | 80 | 8 | 3.31 |
| a-90×75×25/41.5 | 90 | 75 | 25/41.5 | 12.6 |
| a-100×50×5 | 100 | 50 | 5 | 1.97 |
| a-100×40×5 | 100 | 40 | 5 | 1.823 |
| a-100×100×10 | 100 | 100 | 10 | 5.13 |
| a-102×100×34/28.5 | 102 | 100 | 34/28.5 | 14.4 |
| a-160×100×12 | 160 | 100 | 12 | 8.04 |
| a-180×140×60/40 | 180 | 140 | 60/40 | 37.8 |
| a-292.7×150×14 | 292.7 | 150 | 14 | 16.06 |
| a-100×80×15 | 100(δ=10) | 80 | 15 | 5.6 |
Round Rods:(back to top)
Precision Level:
Diameter: Extrusion ±0.1mm，Cold Draw ±0.02 mm
*1inch = 25.4 mm
| Type ( Unit: mm ) | A( Unit: mm ) | Kg/m |
| YB-8 | 8 | 0.14 |
| YB-9.6 | 9.6 | 0.2 |
| YB-10 | 10 | 0.22 |
| YB-12 | 12 | 0.32 |
| YB-12.7 | 12.7 | 0.343 |
| YB-13(+0.2,-0.05) | 13 | 0.36 |
| YB-13.5 | 13.5 | 0.39 |
| YB-14 | 14 | 0.42 |
| YB-14.5 | 14.5 | 0.45 |
| YB-15 | 15 | 0.48 |
| YB-16 | 16 | 0.55 |
| YB-18 | 18 | 0.7 |
| YB-19(+0.2,-0.1) | 19 | 0.8 |
| YB-20 | 20 | 0.86 |
| YB-22 | 22 | 1.05 |
| YB-23 | 23 | 1.15 |
| YB-24 | 24 | 1.25 |
| YB-24 | 24 | 1.22 |
| YB-25 | 25 | 1.35 |
| YB-26 | 26 | 1.45 |
| YB-27 | 27 | 1.5 |
| YB-28 | 28 | 1.68 |
| YB-29 | 29 | 1.783 |
| YB-30 | 30 | 1.95 |
| YB-31 | 31 | 2.05 |
| YB-32 | 32 | 2.2 |
| YB-33 | 33 | 2.309/2.31 |
| YB-34 | 34 | 2.5 |
| YB-Φ34 | 34 | 2.5 |
| YB-35 | 35 | 2.62 |
| YB-36 | 36 | 2.78 |
| YB-Φ36 | 36 | 2.8 |
| YB-37 | 37 | 2.9 |
| YB-38 | 38 | 3.1 |
| YB-Φ38 | 38 | 3.07 |
| YB-38.4 | 38.4 | 3.15 |
| YB-40 | 40 | 3.42 |
| YB-Φ40 | 40 | 3.4 |
| YB-41 | 41 | 3.56 |
| YB-42 | 42 | 3.78 |
| YB-43 | 43 | 3.95 |
| YB-45 | 45 | 4.35 |
| YB-Φ45 | 45 | 4.3 |
| YB-46 | 46 | 4.55 |
| YB-48 | 48 | 4.92 |
| YB-49 | 49 | 5.15 |
| YB-50 | 50 | 5.3 |
| YB-50 | 50 | 5.3 |
| YB-Φ50 | 50 | 5.3 |
| YB-50.8 | 50.8 | 5.5 |
| YB-52 | 52 | 5.78 |
| YB-54 | 54 | 6.2 |
| YB-55 | 55 | 6.45 |
| YB-60 | 60 | 7.63 |
| YB-65 | 65 | 9 |
| YB-69 | 69 | 10.15 |
| YB-70 | 70 | 10.45 |
| YB-72 | 72 | 11.05 |
| YB-75 | 75 | 12 |
| YB-80 | 80 | 13.57 |
| YB-85.5 | 85.5 | 15.5 |
| YB-90 | 90 | 17.18 |
| YB-95 | 95 | 19.14 |
| YB-97 | 97 | 19.95 |
| YB-100 | 100 | 21.21 |
| YB-φ105 | 105 | 23.4 |
| YB-110 | 110 | 25.78 |
| YB-115 | 115 | 28.15 |
| YB-120 | 120 | 30.54 |
| YB-130 | 130 | 36 |
| YB-140 | 140 | 41.56 |
| YB-145 | 145 | 44.78 |
| YB-150 | 150 | 47.9 |
| YB-154 | 154 | 50.292 |
| YB-160 | 160 | 54.5 |
| YB-180 | 180 | 69 |
| YB-190 | 190 | 76.85 |
| YB-200 | 200 | 85.15 |
Aluminum Groove:(back to top)
| Type ( Unit: mm ) | A ( Unit: mm ) | B ( Unit: mm ) | Thickness ( Unit: mm ) | Kg/m |
| CL-9.5×9.5×0.8 | 9.5 | 9.5 | 0.8 | 0.06 |
| CL-10×10×1 | 10 | 10 | 1 | 1.18 |
| CL-10×10×0.8 | 10 | 10 | 0.8 | 0.07 |
| CL-12×12×2 | 12 | 12 | 2 | 0.177 |
| CL-18.5×19×1.5 | 18.5 | 19 | 1.5 | 0.22 |
| CL-19×16×1.5 | 19 | 16 | 1.5 | 0.21 |
| CL-22×19.5×1.5 | 22 | 19.5 | 1.5 | 0.24 |
| CL-22×26.5×2.5 | 22 | 26.5 | 2.5 | 0.47 |
| CL-22×30.5×2.5 | 22 | 30.5 | 2.5 | 0.53 |
| CL-20×26×4 | 26 | 20 | 4 | 0.56 |
| CL-27*20*1.5 | 27 | 20 | 1.5 | 0.26 |
| CL-30×25×1.2 | 30 | 25 | 1.2 | 0.251 |
| CL-32×26.5×2.5 | 32 | 26.5 | 2.5 | 0.54 |
| CL-32×30.5×2.5 | 32 | 30.5 | 2.5 | 0.59 |
| CL-37×26.5×2.5 | 37 | 26.5 | 2.5 | 0.57 |
| CL-37×30.5×2.5 | 37 | 30.5 | 2.5 | 0.63 |
| CL-38×38×6 | 38 | 38 | 6 | 1.652 |
| CL-41.3×19.05×3.2 | 41.3 | 19.05 | 3.2 | 0.633 |
| CL-27.5×46×1.8 | 46 | 27.5 | 1.8 | 0.47 |
| CL-46.9×26.5×1.8 | 46.9 | 26.5 | 1.8 | 0.47 |
| CL-47×26.5×2.5 | 47 | 26.5 | 2.5 | 0.64 |
| CL-47×30.5×2.5 | 47 | 30.5 | 2.5 | 0.7 |
| CL-49×40×4 | 49 | 40 | 4 | 1.3 |
| CL-49×34×4 | 49 | 34 | 4 | 1.2 |
| CL-49.1×27.5×1.8 | 49.1 | 27.5 | 1.8 | 0.49 |
| CL-49.1×29.5×1.8 | 49.1 | 29.5 | 1.8 | 0.51 |
| CL-50.5×60.55×1.8 | 50.5 | 60.55 | 1.8 | 0.82 |
| CL-57.5×51×1.8 | 51 | 57.5 | 1.8 | 0.781 |
| CL-51.5×38×3 | 51.5 | 38 | 3 | 1 |
| CL-53.1×57.5×1.8 | 53.1 | 57.5 | 1.8 | 0.80 |
| CL-53.1×55×1.8 | 53.1 | 55 | 1.8 | 0.78 |
| CL-56×27.5×2.2 | 56 | 27.5 | 2.2 | 0.63 |
| CL-56×27.5×1.8 | 56 | 27.5 | 1.8 | 0.523 |
| CL-56.9×26.5×1.8 | 56.9 | 26.5 | 1.8 | 0.52 |
| CL-56.9×29.5×1.8/4 | 56.9 | 29.5 | 4 | 0.86 |
| CL-57×26.5×2.5 | 57 | 26.5 | 2.5 | 0.71 |
| CL-57×30.5×2.5 | 57 | 30.5 | 2.5 | 0.76 |
| CL-59.1×26×1.8 | 59.1 | 26 | 1.8 | 0.52 |
| CL-59.1×26.7×1.8 | 59.1 | 26.7 | 1.8 | 0.53 |
| CL-40×60×6 | 60 | 40 | 6 | 2.07 |
| CL-60.5×57.5×1.8 | 60.5 | 57.5 | 1.8 | 0.837 |
| CL-60.5×60.55×1.8 | 60.5 | 60.55 | 1.8 | 0.86 |
| CL-61.5×38×3 | 61.5 | 38 | 3 | 1.04 |
| CL-61.5×57.5×2.25 | 61.5 | 57.5 | 2.25 | 1.05 |
| CL-62×26.5×2.5 | 62 | 26.5 | 2.5 | 0.74 |
| CL-62×30.5×2.5 | 62 | 30.5 | 2.5 | 0.79 |
| CL63.1×60×1.8 | 63.1 | 60 | 1.8 | 0.87 |
| CL-63.1×58.8×1.8 | 63.1 | 58.8 | 1.8 | 0.86 |
| CL-63.5×25.4×3.2 | 63.5 | 25.4 | 3.2 | 0.94 |
| CL-66.5×38×3 | 66.5 | 38 | 3 | 1.1 |
| CL-71×27.5×2.2 | 71 | 27.5 | 2.2 | 0.72 |
| CL-71×27.5×1.8 | 71 | 27.5 | 1.8 | 0.596 |
| CL-71.9×26.5×1.8 | 71.9 | 26.5 | 1.8 | 0.59 |
| CL-71.9×29.5×1.8/4 | 71.9 | 29.5 | 4 | 1.02 |
| CL-72×26.5×2.5 | 72 | 26.5 | 2.5 | 0.81 |
| CL-72×30.5×2.5 | 72 | 30.5 | 2.5 | 0.86 |
| CL-74.1×26×1.8 | 74.1 | 26 | 1.8 | 0.60 |
| CL-74.1×26.7×1.8 | 74.1 | 26.7 | 1.8 | 0.60 |
| CL-75.5×57.5×1.7 | 75.5 | 57.5 | 1.7 | 0.86 |
| CL-75.5×60.55×1.8 | 75.5 | 60.55 | 1.8 | 0.94 |
| CL-76.5×57.5×2.25 | 76.5 | 57.5 | 2.25 | 1.14 |
| CL-78.1×60×1.8 | 78.1 | 60 | 1.8 | 0.95 |
| CL-78.1×58.8×1.8 | 78.1 | 58.8 | 1.8 | 0.93 |
| CL-80×20×1.2 | 80 | 20 | 1.2 | 0.381 |
| CL-80×75×1.2 | 80 | 75 | 1.2 | 0.74 |
| CL-81.25×38×3 | 81.25 | 38 | 3 | 1.25 |
| CL-82×26.5×2.5 | 82 | 26.5 | 2.5 | 0.88 |
| CL-82×30.5×2.5 | 82 | 30.5 | 2.5 | 0.93 |
| CL-86×27.5×2.2 | 86 | 27.5 | 2.2 | 0.81 |
| CL-86×27.5×1.8 | 86 | 27.5 | 1.8 | 0.667 |
| CL-86.9×26.5×1.8 | 86.9 | 26.5 | 1.8 | 0.66 |
| CL-86.9×29.5×1.8/4 | 86.9 | 29.5 | 4 | 1.19 |
| CL-87×26.5×2.5 | 87 | 26.5 | 2.5 | 0.91 |
| CL-87×30.5×2.5 | 87 | 30.5 | 2.5 | 0.97 |
| CL-89.1×26×1.8 | 89.1 | 26 | 1.8 | 0.67 |
| CL-89.1×26.7×1.8 | 89.1 | 26.7 | 1.8 | 0.68 |
| CL-90.5×57.5×1.7 | 90.5 | 57.5 | 1.7 | 0.929 |
| CL-90.5×60.55×1.8 | 90.5 | 60.55 | 1.8 | 1.01 |
| CL-91.5×57.5×2.25 | 91.5 | 57.5 | 2.25 | 1.23 |
| CL-92×26.5×2.5 | 92 | 26.5 | 2.5 | 0.95 |
| CL-92×30.5×2.5 | 92 | 30.5 | 2.5 | 1 |
| CL-93.1×60×1.8 | 93.1 | 60 | 1.8 | 1.02 |
| CL-93.1×58.8×1.8 | 93.1 | 58.8 | 1.8 | 1.01 |
| CL-96.5×38×3 | 96.5 | 38 | 3 | 1.35 |
| CL-100×25×2.5 | 100 | 25 | 2.5 | 0.99 |
| CL-100*80*4 | 100 | 80 | 4 | 7.72 |
| CL-101.9×26.5×1.8 | 101.9 | 26.5 | 1.8 | 0.74 |
| CL-101.9×29.5×1.8/4 | 101.9 | 29.5 | 4 | 1.35 |
| CL-102×26.5×2.5 | 102 | 26.5 | 2.5 | 1.01 |
| CL-102×30.5×2.5 | 102 | 30.5 | 2.5 | 1.07 |
| CL-104.1×26×1.8 | 104.1 | 26 | 1.8 | 0.74 |
| CL-105.5×60.55×1.8 | 105.5 | 60.55 | 1.8 | 1.08 |
| CL-108.1×60×1.8 | 108.1 | 60 | 1.8 | 1.09 |
| CL-110×25×2.5 | 110 | 25 | 2.5 | 1.10 |
| CL-110X110X10 | 110 | 110 | 10 | 5.67 |
| CL-111×38×3 | 111 | 38 | 3 | 1.44 |
| CL-115×45×1.5 | 115 | 45 | 1.5 | 2.35 |
| CL-120×25×3.5 | 120 | 25 | 3.5 | 1.54 |
| CL-120×55×8 | 120 | 55 | 8 | 5.743 |
| CL-121×27.5×2.2 | 121 | 27.5 | 2.2 | 1.02 |
| CL-121.9×26.5×1.8 | 121.9 | 26.5 | 1.8 | 0.83 |
| CL-122×26.5×2.5 | 122 | 26.5 | 2.5 | 1.15 |
| CL-122×30.5×2.5 | 122 | 30.5 | 2.5 | 1.2 |
| CL-124.1×26×1.8/2.2 | 124.1 | 26 | 1.8/2.2 | 0.97 |
| CL-125×55×6.5 | 125 | 55 | 6.5 | 3.896 |
| CL-125.5×57.5×1.8 | 125.5 | 57.5 | 1.8 | 1.152 |
| CL-125.5×60.55×1.8 | 125.5 | 60.55 | 1.8 | 1.18 |
| CL-126×38×3 | 126 | 38 | 3 | 1.6 |
| CL-126.5×57.5×2.25 | 126.5 | 57.5 | 2.25 | 1.44 |
| CL-128.1×60.2×1.8/2.2 | 128.1 | 60.2 | 1.8/2.2 | 1.33 |
| CL-132×26.5×2.5 | 132 | 26.5 | 2.5 | 1.21 |
| CL-132×30.5×2.5 | 132 | 30.5 | 2.5 | 1.3 |
| CL-136×37×2.5 | 136 | 37 | 2.5 | 1.38 |
| CL-141×26×2.5 | 141 | 26 | 2.5 | 1.27 |
| CL-141.9×26.5×1.8/2.5 | 141.9 | 26.5 | 1.8/2.5 | 1.19 |
| CL-141.9×29.5×1.8/4 | 141.9 | 29.5 | 4 | 1.78 |
| CL-144.1×26×1.8/2.2 | 144.1 | 26 | 1.8/2.2 | 1.09 |
| CL-145×25×3.5 | 145 | 25 | 3.5 | 1.78 |
| CL-145.5×61.25×1.8/2.5 | 145.5 | 61.25 | 1.8/2.5 | 1.55 |
| CL-146×38×3 | 146 | 38 | 3 | 1.73 |
| CL-147×60×2.5 | 147 | 60 | 2.5 | 1.77 |
| CL-148.1×60.2×1.8/2.2 | 148.1 | 60.2 | 1.8/2.2 | 1.44 |
| CL-157×26.5×2.5 | 157 | 26.5 | 2.5 | 1.38 |
| CL-157×30.5×2.5 | 157 | 30.5 | 2.5 | 1.44 |
| CL-161×38×3 | 161 | 38 | 3 | 1.85 |
| CL-170×25×3.5 | 170 | 25 | 3.5 | 2.02 |
| CL-180X180X16 | 180 | 180 | 16 | 14.86 |
| CL-186×26×2.5 | 186 | 26 | 2.5 | 1.57 |
| CL-186.9×26.5×1.8/2.5 | 186.9 | 26.5 | 1.8/2.5 | 1.5 |
| CL-189.1×26×1.8/2.2 | 189.1 | 26 | 1.8/2.5 | 1.51 |
| CL-63.5×190.5×6 | 190.5 | 63.5 | 6 | 7.35 |
| CL-190.5×61.25×1.8/2.5 | 190.5 | 61.25 | 1.8/2.5 | 1.86 |
| CL-191×38×3 | 191 | 38 | 3 | 2.84 |
| CL-192×26.5×2.5 | 192 | 26.5 | 2.5 | 1.62 |
| CL-192×30.5×2.5 | 192 | 30.5 | 2.5 | 1.67 |
| CL-192×60×2.5 | 192 | 60 | 2.5 | 2.07 |
| CL-193.1×60.5×1.8/2.2 | 193.1 | 60.5 | 1.8/2.2 | 1.87 |
| CL-200×90×12 | 200 | 90 | 12 | 11.6 |
| CL-200×90×10 | 200 | 90 | 10 | 9.6 |
| CL-201×38×4.5 | 201 | 38(δ=3) | 4.5 | 3 |
| CL-222×26.5×2.5 | 222 | 26.5 | 2.5 | 1.82 |
| CL-222×30.5×2.5 | 222 | 30.5 | 2.5 | 1.88 |
| CL-231×26×2.5 | 231 | 26 | 2.5 | 1.88 |
| CL-231.9×26.5×1.8/2.5 | 231.9 | 26.5 | 1.8/2.5 | 1.8 |
| CL-235.5×61.25×1.8/2.5 | 235.5 | 61.25 | 1.8/2.5 | 2.16 |
| CL-237×60×2.5 | 237 | 60 | 2.5 | 2.38 |
| CL-250×35×6 | 250 | 35 | 6 | 4.99 |
| CL-270×25×6 | 270 | 25 | 6 | 5 |
| CL-304.8×50.8×4.76 | 304.8 | 50.8 | 4.76 | 5.1 |
Square Tubes:(back to top)
| Type ( Unit: mm ) | A ( Unit: mm ) | B ( Unit: mm ) | Thickness ( Unit: mm ) | Kg/m |
| FG-12×10×1 | 12 | 10 | 1 | 0.101 |
| 15×13×1 | 15 | 13 | 1 | 0.114 |
| FG-16×14×1 | 16 | 14 | 1 | 0.144 |
| 19×19×1.6 | 19 | 19 | 1.6 | 0.31 4R1 |
| FG-20×18×1 | 20 | 18 | 1 | 0.187 |
| FG-21×20×3 | 21 | 20 | 3 | 0.57 |
| 24×13×1 | 24 | 13 | 1 | 0.189 |
| FG-24×24×2 | 24 | 24 | 2 | 0.48 |
| 24.4×9.4×1.1 | 24.4 | 9.4 | 1.1 | 0.19 |
| FG-25×25×2.95 | 25 | 25 | 2.95 | 0.7 |
| FG-25×50×3 | 25 | 50 | 3 | 1.1 |
| 25.4×25.4×1.9 | 25.4 | 25.4 | 1.9 | 0.457 |
| 28×14×1.4 | 28 | 14 | 1.4 | 0.255 |
| 30×10×1 | 30 | 10 | 1 | 0.205 |
| 30×23.2×2 | 30 | 23.2 | 2 | 0.55 |
| 30×25×1.2 | 30 | 25 | 1.2 | 0.3408 |
| FG-30X30X3 | 30 | 30 | 3 | 0.9 |
| FG-30*25*1.7 | 30 | 25 | 1.7 | 0.47 |
| FG-32×32×2.4 | 32 | 32 | 2.4 | 0.77 |
| 32×32×1.8 | 32 | 32 | 1.8 | 0.6 |
| 34.2×22.4×1.8 | 34.2 | 22.4 | 1.8 | 0.491 |
| 38×20×0.8 | 38 | 20 | 0.8 | 0.2436 |
| 38×25×0.8 | 38 | 25 | 0.8 | 0.28 |
| 38×38×2 | 38 | 38 | 2 | 0.743 |
| FG-38×38×2.4 | 38 | 38 | 2.4 | 0.92 |
| FG-38×25×2.95 | 38 | 25 | 2.95 | 0.9 |
| 38.1×38.1×3.05 | 38.1 | 38.1 | 3.05 | 1.18 |
| 40×10×1.2 | 40 | 10 | 1.2 | 0.308 |
| 40×25×1.2 | 40 | 25 | 1.2 | 1.05 |
| 40×30×2 | 40 | 30 | 2 | 0.75 |
| 40×40×4 | 40 | 40 | 4 | 1.56 |
| FG-50×30×3 | 50 | 30 | 3 | 1.2 |
| FG-50×30×2 | 50 | 30 | 2 | 0.82 |
| 50.8×25.4×2.1 | 50.8 | 25.4 | 2.1 | 0.85 |
| 54.5×35×1.10 | 54.5 | 35 | 1.8 | 0.812 |
| 60×40×4 | 60 | 40 | 4 | 1.99 |
| 60×40×5 | 60 | 40 | 5 | 2.43 |
| FG-60×40×2 | 60 | 40 | 2 | 1.04 |
| 60×60×4 | 60 | 60 | 4 | 2.42 |
| 60×60×6 | 60 | 60 | 6 | 3.5 |
| 70×25×1.2 | 70 | 25 | 1.2 | 0.62 |
| 70×25×0.9 | 70 | 25 | 0.9 | 0.46 |
| FG-70*40*2.5 | 70 | 40 | 2.5 | 1.42 |
| FG-73×25×1.5 | 73 | 25 | 1.5 | 0.76 |
| 76×44×1.2 | 76 | 44 | 1.2 | 0.8 |
| 80×40×3 | 80 | 40 | 3 | 1.847 |
| 80×44×1.2 | 80 | 44 | 1.2 | 0.67 |
| 88×44×1.4 | 88 | 44 | 1.4 | 1 |
| 88×44×2 | 88 | 44 | 2 | 1.4 |
| 92.5×57×3 | 92.5 | 57 | 3 | 2.313 |
| 100×44×1.2 | 100 | 44 | 1.2 | 0.95 |
| 100×44×1.4 | 100 | 44 | 1.4 | 1.067 |
| 100×50×8 | 100 | 50 | 8 | 5.8 |
| 100×50×6/4 | 100 | 50 | 6/4 | 3.52 |
| 100×100×1.4 | 100 | 100 | 1.4 | 1.49 |
| 120×60×6 | 120 | 60 | 6 | 5.54 |
| 120×120×8 | 120 | 120 | 8 | 9.69 |
| 126×45×3.2 | 126 | 45 | 3.2 | 2.86 |
| FG-168×72×4 | 168 | 72 | 4 | 4.9 |
| 200×50×8 | 200 | 50 | 8 | 10.1 |
| 200×100×8 | 200 | 100 | 8 | 12.35 |
| 204×154×6 | 204 | 154 | 6 | 11.3 |
| 280×140×8 | 280 | 140 | 8 | 17.55 |
Aluminum Row:(back to top)
| Type ( Unit: mm ) | A ( Unit: mm ) | Thickness ( Unit: mm ) | Kg/m |
| BT-12×12 | 12 | 12 | 0.39 |
| BT-12.5×2.2 | 12.5 | 2.2 | 0.07 |
| BT-12.5×3 | 12.5 | 3 | 0.101 |
| BT-12.7×6.35 | 12.7 | 6.35 | 0.219 |
| BT-15×1.2 | 15 | 1.2 | 0.0486 |
| BT-15×15 | 15 | 15 | 0.608 |
| BT-15×3 | 15 | 3 | 0.12 |
| BT-15×8 | 15 | 8 | 0.324 |
| BT-15.4×15.4 | 15.4 | 15.4 | 0.640332 |
| BT-16.4×3.8 | 16.4 | 3.8 | 0.168264 |
| BT-17×6 | 17 | 6 | 0.25 |
| BT-19.6×6 | 19.6 | 6 | 0.3 |
| BT-20×14 | 20 | 14 | 0.76 |
| BT-20×15 | 20 | 15 | 0.81 |
| BT-20×5 | 20 | 5 | 0.27 |
| BT-20×5 | 20 | 5 | 0.26 |
| BT-20×6 | 20 | 6 | 0.3 |
| BT-20×7.5 | 20 | 7.5 | 0.37 |
| BT-20×8 | 20 | 8 | 0.432 |
| BT-20×9.5 | 20 | 9.5 | 0.513 |
| BT-23×20 | 23 | 20 | 1.24 |
| BT-25×2.5 | 25 | 2.5 | 0.169 |
| BT-25×5 | 25 | 5 | 0.34 |
| BT-30×10 | 30 | 10 | 0.81 |
| BT-30×15 | 30 | 15 | 1.215 |
| BT-30×2.5 | 30 | 2.5 | 0.2 |
| BT-30×5 | 30 | 5 | 0.405 |
| BT-30×6 | 30 | 6 | 0.48 |
| BT-30×6 | 30 | 6 | 0.49 |
| BT-30×8 | 30 | 8 | 0.648 |
| BT-34×15 | 34 | 15 | 1.38 |
| BT-35×3 | 35 | 3 | 0.28 |
| BT-35×4 | 35 | 4 | 0.38 |
| BT-35×6 | 35 | 6 | 0.567 |
| BT-40×15 | 40 | 15 | 1.62 |
| BT-40×20 | 40 | 20 | 2.16 |
| BT-40×25 | 40 | 25 | 2.7 |
| BT-40×6 | 40 | 6 | 0.63 |
| BT-40X15 | 40 | 15 | 1.62 |
| BT-40×8 | 40 | 8 | 0.83 |
| BT-45×15 | 45 | 15 | 1.8225 |
| BT-45×3 | 45 | 3 | 0.36 |
| BT-45×3 | 45 | 3 | 0.34 |
| BT-45×4 | 45 | 4 | 0.477 |
| BT-45×5 | 45 | 5 | 0.59 |
| BT-45×6 | 45 | 6 | 0.71 |
| BT-45×6 | 45 | 6 | 0.71 |
| BT-50×20 | 50 | 20 | 2.7 |
| BT-50×23 | 50 | 23 | 3.105 |
| BT-50×5 | 50 | 5 | 0.675 |
| BT-50×6 | 50 | 6 | 0.81 |
| BT-50×6(FR) | 50 | 6 | 0.79 |
| BT-50×10 | 50 | 10 | 1.29 |
| BT-51×11 | 51 | 11 | 1.51 |
| BT-51×12 | 51 | 12 | 1.65 |
| BT-52×52 | 52 | 52 | 7.3008 |
| BT-55×3 | 55 | 3 | 0.44 |
| BT-55×3 | 55 | 3 | 0.42 |
| BT-55×4 | 55 | 4 | 0.59 |
| BT-55×5 | 55 | 5 | 0.85 |
| BT-55×55 | 55 | 55 | 8.17 |
| BT-55×6.5 | 55 | 6.5 | 0.965 |
| BT-55×7 | 55 | 7 | 0.97 |
| BT-55×6 | 55 | 6 | 0.87 |
| BT-60×12 | 60 | 12 | 1.95 |
| BT-60×3 | 60 | 3 | 0.48 |
| BT-60×30 | 60 | 30 | 4.86 |
| BT-60×40 | 60 | 40 | 6.48 |
| BT-60×50 | 60 | 50 | 7.25 |
| BT-60×6 | 60 | 6 | 0.95 |
| BT-60×6 | 60 | 6 | 0.98 |
| BT-60×6 | 60 | 6 | 0.95 |
| BT-60×8 | 60 | 8 | 1.26 |
| BT-63×14.5 | 63 | 14.5 | 2.46645 |
| BT-65×6 | 65 | 6 | 1.05 |
| BT-70×25 | 70 | 25 | 4.73 |
| BT-70×3 | 70 | 3 | 0.56 |
| BT-70×34 | 70 | 34 | 6.4 |
| BT-70×5.5 | 70 | 5.5 | 1.02 |
| BT-70×5 | 70 | 5 | 1.05 |
| BT-70×19 | 70 | 19 | 3.58 |
| BT-70X5 | 70 | 5 | 0.93 |
| BT-70X3 | 70 | 3 | 0.56 |
| BT-70×6 | 70 | 6 | 1.11 |
| BT-71.5×23.5 | 71.5 | 23.5 | 4.536675 |
| BT-73×28.5 | 73 | 28.5 | 5.6 |
| BT-75×35 | 75 | 35 | 7.0875 |
| BT-78×5 | 78 | 5 | 1.05 |
| BT-55×80 | 80 | 55 | 11.8 |
| BT-80×3 | 80 | 3 | 0.64 |
| BT-80×3 | 80 | 3 | 0.65 |
| BT-80×6 | 80 | 6 | 1.28 |
| BT-80×8 | 80 | 8 | 1.69 |
| BT-80×8 | 80 | 8 | 1.69 |
| BT-80×6 | 80 | 6 | 1.28 |
| BT-83×21 | 83 | 21 | 4.71 |
| BT-85×22 | 85 | 22 | 5.049 |
| BT-85×3 | 85 | 3 | 0.68 |
| BT-85×5 | 85 | 5 | 1.25 |
| BT-85×6 | 85 | 6 | 1.36 |
| BT-55×90 | 90 | 55 | 13.36 |
| BT-90×50 | 90 | 50 | 12.15 |
| BT-90×3 | 90 | 3 | 0.72 |
| BT-90×6 | 90 | 6 | 1.44 |
| BT-90×8 | 90 | 8 | 1.9 |
| BT-92×40 | 92 | 40 | 9.936 |
| BT-55×95 | 95 | 55 | 14.1 |
| BT-95×6 | 95 | 6 | 1.518 |
| BT-95×95 | 95 | 95 | 24.4 |
| BT-95×16 | 95 | 16 | 4.104 |
| BT-95×6 | 95 | 6 | 1.52 |
| BT-100×10 | 100 | 10 | 2.7 |
| BT-100×20 | 100 | 20 | 5.4 |
| BT-100×55 | 100 | 55 | 14.85 |
| BT-100×6 | 100 | 6 | 1.62 |
| BT-100×8 | 100 | 8 | 2.2 |
| BT-100×10 | 100 | 10 | 2.64 |
| BT-100×6 | 100 | 6 | 1.6 |
| BT-100×3 | 100 | 3 | 0.81 |
| BT-102×10 | 102 | 10 | 2.75 |
| BT-106×28 | 106 | 28 | 8.01 |
| BT-70×107 | 107 | 70 | 20.2 |
| BT-110×30 | 110 | 30 | 8.91 |
| BT-110×40 | 110 | 40 | 11.88 |
| BT-110×50 | 110 | 50 | 14.85 |
| BT-110×6 | 110 | 6 | 1.77 |
| BT-110×6 | 110 | 6 | 1.79 |
| BT-110×8 | 110 | 8 | 2.35 |
| BT-110×8 | 110 | 8 | 2.53 |
| BT-113×9 | 113 | 9 | 2.7 |
| BT-115×4 | 115 | 4 | 1.2 |
| BT-115×50 | 115 | 50 | 14.99 |
| BT-115×4 | 115 | 4 | 1.2 |
| BT-118×26 | 118 | 26 | 8.3 |
| BT-120×3 | 120 | 3 | 0.97 |
| BT-120×3 | 120 | 3 | 0.94 |
| BT-120×5 | 120 | 5 | 1.75 |
| BT-120×5 | 120 | 5 | 1.62 |
| BT-120×6 | 120 | 6 | 1.93 |
| BT-120×5.5 | 120 | 5.5 | 1.77 |
| BT-120.5×11.5 | 120.5 | 11.5 | 3.741525 |
| BT-122×25 | 122 | 25 | 8.2 |
| BT-124×84 | 124 | 84 | 28.1 |
| BT-125×50 | 125 | 50 | 16.875 |
| BT-125×6 | 125 | 6 | 2 |
| BT-125×6 | 125 | 6 | 2 |
| BT-128×4.5 | 128 | 4.5 | 1.56 |
| BT-130×8 | 130 | 8 | 2.78 |
| BT-130×14 | 130 | 14 | 4.92 |
| BT-132×34.5 | 132 | 34.5 | 12.2958 |
| BT-132×19 | 132 | 19 | 6.77 |
| BT-133×33 | 133 | 33 | 11.85 |
| BT-135×31 | 135 | 31 | 11.3 |
| BT-136×37 | 136 | 37 | 13.6 |
| BT-140×3 | 140 | 3 | 1.13 |
| BT-140×3 | 140 | 3 | 1.1 |
| BT-140×5.5 | 140 | 5.5 | 2.06 |
| BT-140×6 | 140 | 6 | 2.2 |
| BT-140×8 | 140 | 8 | 2.998 |
| BT-140×3 | 140 | 3 | 1.12 |
| BT-140×6 | 140 | 6 | 2.25 |
| BT-140×6 | 140 | 6 | 2.25 |
| BT-140×5 | 140 | 5 | 1.88 |
| BT-143×131 | 143 | 131 | 50.5 |
| BT-145×33.5 | 145 | 33.5 | 13.01 |
| BT-148×127 | 148 | 127 | 50.7492 |
| BT-148×34.5 | 148 | 34.5 | 13.7862 |
| BT-150×10 | 150 | 10 | 4.05 |
| BT-150×12.5 | 150 | 12.5 | 5.1 |
| BT-150×20 | 150 | 20 | 8.1 |
| BT-150×8 | 150 | 8 | 3.22 |
| BT-150×8 | 150 | 8 | 3.2 |
| BT-151×41 | 151 | 41 | 16.7 |
| BT-125×3 | 152 | 3 | 1.01 |
| BT-152×37 | 152 | 37 | 15.18 |
| BT-155×50 | 155 | 50 | 20.925 |
| BT-160×28 | 160 | 28 | 12.1 |
| BT-160×3 | 160 | 3 | 1.29 |
| BT-160×6 | 160 | 6 | 2.6 |
| BT-160×6 | 160 | 6 | 2.57 |
| BT-165×2 | 165 | 2 | 0.891 |
| BT-166×41 | 166 | 41 | 18.444 |
| BT-146×167 | 167 | 146 | 65.8 |
| BT-168×25.4 | 168 | 25.4 | 11.6 |
| BT-171×77 | 171 | 77 | 35.5509 |
| BT-175×162 | 175 | 162 | 76.55 |
| BT-175×22 | 175 | 22 | 10.395 |
| BT-175×4 | 175 | 4 | 1.9 |
| BT-175×8 | 175 | 8 | 3.7 |
| BT-175×18 | 175 | 18 | 8.51 |
| BT-175×67 | 175 | 67 | 31.66 |
| BT-180×47 | 180 | 47 | 22.84 |
| BT-180×62 | 180 | 62 | 30.132 |
| BT-180×55 | 180 | 55 | 26.73 |
| BT-180×58 | 180 | 58 | 28.19 |
| BT-185×3 | 185 | 3 | 1.49 |
| BT-185×6 | 185 | 6 | 2.9 |
| BT-185×55 | 185 | 55 | 27.4725 |
| BT-185X6 | 185 | 6 | 2.98 |
| BT-185X5.5 | 185 | 5.5 | 2.73 |
| BT-185×5 | 185 | 5 | 2.48 |
| BT-187×22 | 187 | 22 | 11.1078 |
| BT-188×31 | 188 | 31 | 15.7356 |
| BT-194×34 | 194 | 34 | 17.875 |
| BT-197×35 | 197 | 35 | 18.6165 |
| BT-200×6 | 200 | 6 | 3.219 |
| BT-200×6 | 200 | 6 | 3.22 |
| BT-200×3.4 | 200 | 3.4 | 1.84 |
| BT-204X21.5 | 204 | 21.5 | 11.84 |
| BT-205×66 | 205 | 66 | 36.531 |
| BT-206×5.3 | 206 | 5.3 | 2.95 |
| BT-95××210 | 210 | 95 | 53.9 |
| BT-212×17 | 212 | 17 | 9.7308 |
| BT-219×22 | 219 | 22 | 1386 |
| BT-220×10 | 220 | 10 | 5.94 |
| BT-220×12 | 220 | 12 | 7.128 |
| BT-220×14 | 220 | 14 | 8.316 |
| BT-220×16 | 220 | 16 | 9.504 |
| BT-220×18 | 220 | 18 | 10.692 |
| BT-220×20 | 220 | 20 | 11.88 |
| BT-220×25 | 220 | 25 | 14.85 |
| BT-220×30 | 220 | 30 | 17.82 |
| BT-220×35 | 220 | 35 | 20.79 |
| BT-220×40 | 220 | 40 | 23.76 |
| BT-220×45 | 220 | 45 | 26.73 |
| BT-220×50 | 220 | 50 | 29.7 |
| BT-220×55 | 220 | 55 | 32.67 |
| BT-220×60 | 220 | 60 | 35.64 |
| BT-220X6 | 220 | 6 | 3.54 |
| BT-230×3 | 230 | 3 | 1.86 |
| BT-230×6 | 230 | 6 | 3.726 |
| BT-230×7 | 230 | 7 | 4.32 |
| BT-230X5 | 230 | 5 | 3.09 |
| BT-232×52 | 232 | 52 | 32.5728 |
| BT-238×54 | 238 | 54 | 4.7004 |
| BT-240×57.5 | 240 | 57.5 | 37.26 |
| BT-240×25 | 240 | 25 | 16.2 |
| BT-250×40 | 250 | 40 | 27 |
| BT-250×6 | 250 | 6 | 4.03 |
| BT-253×64 | 253 | 64 | 43.7184 |
| BT-261×69 | 261 | 69 | 48.6243 |
| BT-262×86 | 262 | 86 | 60.83 |
| BT-272×44 | 272 | 44 | 32.3136 |
| BT-283×56 | 283 | 56 | 42.787 |
| BT-285×66.5 | 285 | 66.5 | 51.17175 |
| BT-286×23 | 286 | 23 | 17.82 |
| BT-290×53 | 290 | 53 | 43.2 |
| BT-297×28.7 | 297 | 28.7 | 23.44 |
| BT-299×13 | 299 | 13 | 10.5 |
| BT-300×10 | 300 | 10 | 8.1 |
| BT-300×20 | 300 | 20 | 16.2 |
| BT-300×30 | 300 | 30 | 24.3 |
| BT-300×40 | 300 | 40 | 32.4 |
| BT-300×50 | 300 | 50 | 40.5 |
| BT-300×60 | 300 | 60 | 48.6 |
| BT-301×71 | 301 | 71 | 55.5 |
| BT-303X71 | 303 | 71 | 58.09 |
| BT-304×35 | 304 | 35 | 28.8 |
| BT-309.29×56 | 309.29 | 56 | 45.79 |
| BT-321×24 | 321 | 24 | 20.8008 |
| BT-322×28.1 | 322 | 28.1 | 24.88 |
| BT-323×25 | 323 | 25 | 21.9 |
| BT-323.5×64.7 | 323.5 | 64.7 | 56.51 |
| BT-351×58 | 351 | 58 | 54.9666 |
| BT-360×80 | 360 | 80 | 77.76 |
| BT-361×28.7 | 361 | 28.7 | 28.49 |
| BT-361×28.1 | 361 | 28.1 | 28.9 |
| BT-363×25 | 363 | 25 | 24.6 |
| BT-400×20 | 400 | 20 | 21.6 |
| BT-400×25 | 400 | 25 | 27 |
| BT-400×30 | 400 | 30 | 32.4 |
| BT-400×35 | 400 | 35 | 37.8 |
| BT-400×40 | 400 | 40 | 43.2 |
| BT-400×45 | 400 | 45 | 48.6 |
| BT-400×50 | 400 | 50 | 54 |
| BT-430×30 | 430 | 30 | 34.83 |
| BT-430×60 | 430 | 60 | 69.66 |
